Understanding IC Structure from Silicon to System-Level Integration

Semiconductor devices are the backbone of modern electronics. From smartphones to industrial systems, every product depends on how efficiently a chip is designed and packaged. At Saktech, we provide deep expertise in semiconductor die cross section analysis and packaging evaluation, enabling better performance, reliability, and cost optimization.

What is a Semiconductor Die Cross Section?

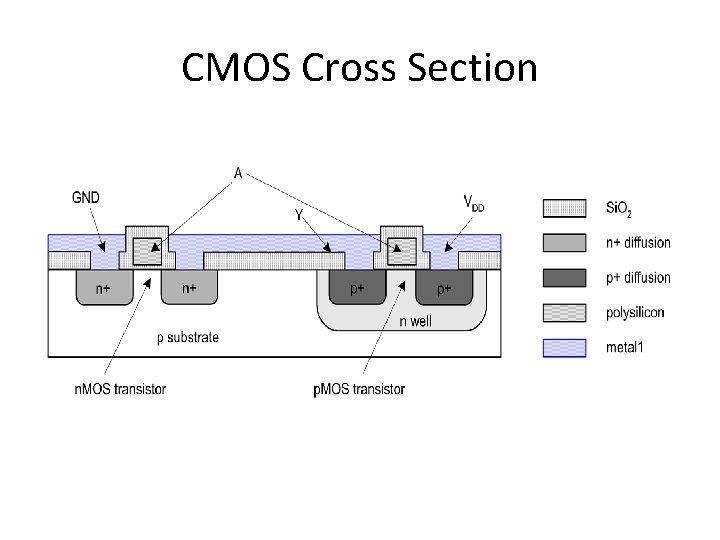

A semiconductor die cross section reveals the internal architecture of an integrated circuit (IC). It shows how transistors, interconnects, and insulating layers are stacked on a silicon substrate.

Key Layers in a Die Structure



    • Silicon Substrate – The base material where the chip is built
    • Doped Regions (N-type / P-type) – Form transistors for switching
    • Gate Structure – Controls electrical flow in transistors
    • Isolation Layers (STI) – Prevent leakage between components
    • Interlayer Dielectric (ILD) – Insulates metal layers

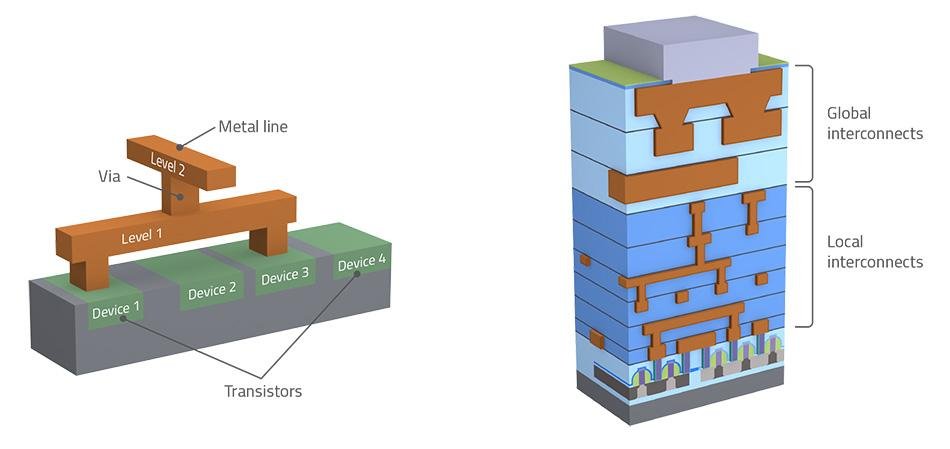

    • Metal Interconnects (M1–Mn) – Connect billions of transistors
    • Passivation Layer – Protects the chip from environmental damage

This layered architecture enables high-density, high-speed electronic functionality in modern ICs.

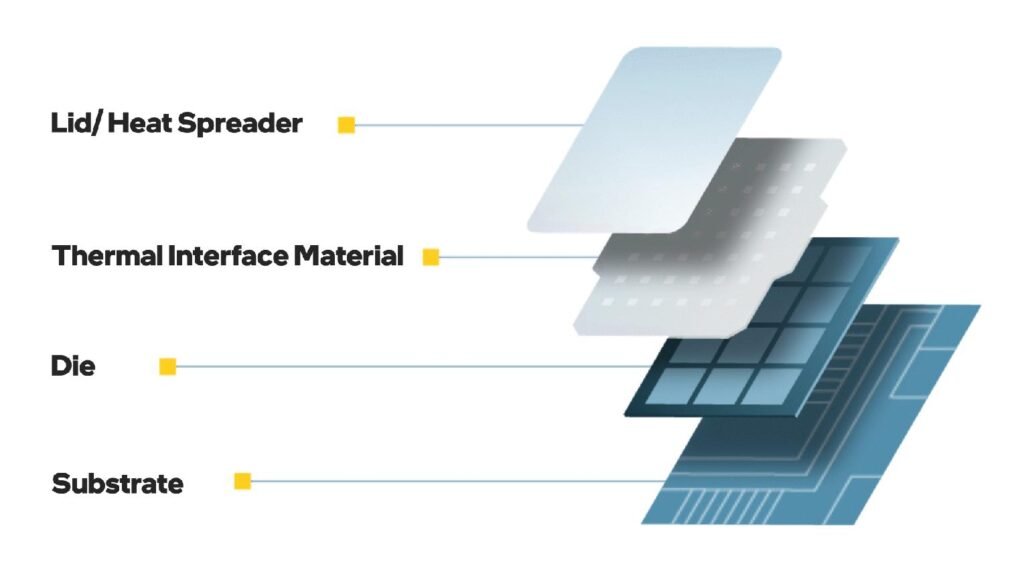

Semiconductor Packaging (Outside the Chip)

Core elements:

  • Die attach
  • Substrate / leadframe
  • Interconnection (wire bond or flip-chip)
  • Mold compound (protection)
  • External pins / balls

Key Packaging Types

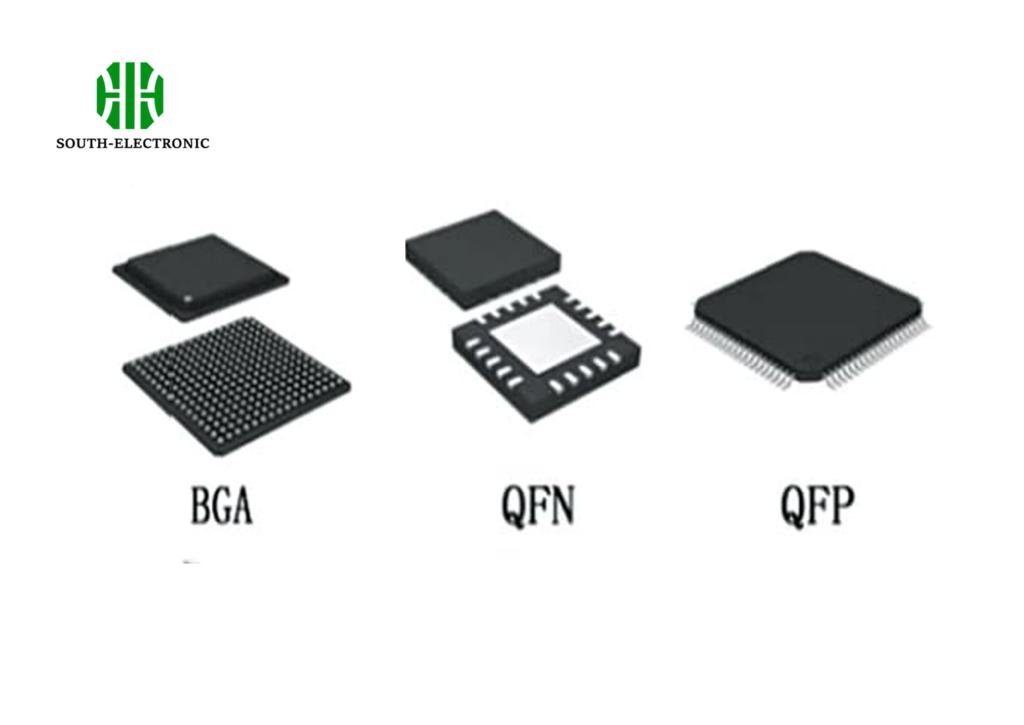

  • QFN / DFN – compact, cost-effective
  • QFP – leaded package
  • BGA – high performance

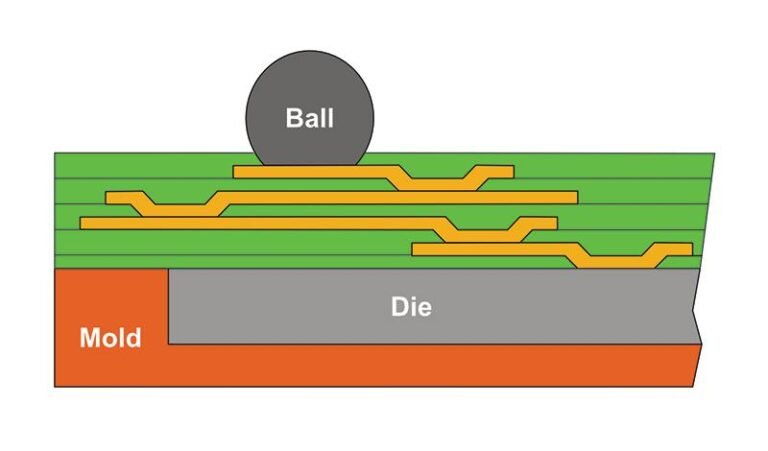

  • WLCSP / 3D IC – advanced packaging

Analysis Focus (Engineering & Sourcing)

  • Die size → impacts cost & yield
  • Package type → QFN (low cost) vs BGA (high performance)

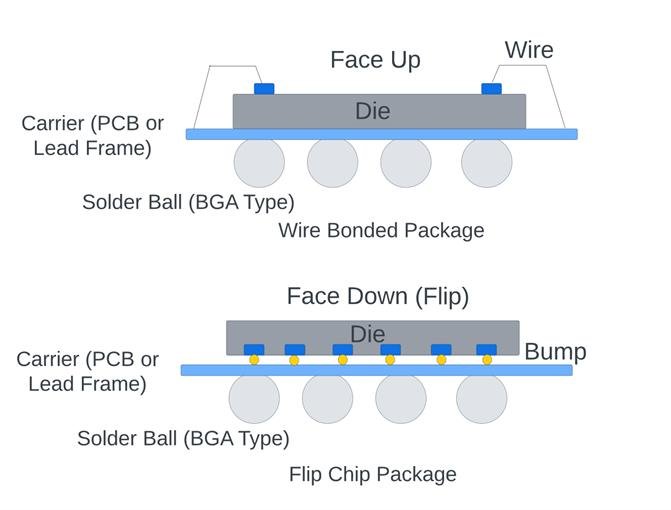

  • Interconnect → wire bond vs flip-chip
  • Thermal design → heat dissipation capability
  • Pin count & substrate → complexity and cost

Die structure defines how a chip functions, while packaging determines how it performs in real-world applications. Optimizing both ensures better performance, reliability, and cost efficiency.
